Aviator Series

Collect
Product parameters
SeriesAVIATOR
Model NoJTV-A400JTV-A800
Max.PCB Size (including fixture）

Dual C/V:L320xW300mm

Single C/V:L320xW480mm

Dual C/V:L350xW300mm

Single C/V:L350xW480mm

Component SizeMax.L40x W40 x H50mm
PCB ClearanceUpper 70/Lower 22mm
Tact Time0.8sec0.75sec
Insertion Accuracy±0.05mmO±0.03mm
Gantry TpyeDual Gantry

No.of Insertion Head

4

8
Gripper/Nozzle TypeIndependent Servo Motor
Auto Gripper Change StationO
No. of Feeder StationsUp to 4 Front 4 Back4Up to 8 Front 8 Back8

Each Type of feeder's Capacity ：

Tape Feeder

Mult-Sbick Feeder Vibration Feeder

Dual-Tray Feeder Mul-TrayFeeder

Front 4 Back 4

Front 4 Back 4

Front 4 Back 4

Front 1 Back 1

Front 1 Back 1

Front 8 Back 8

Front 8 Back 8

Front 8 Back 8

Front 2 Back 2

Front 1 Back 2

MES SupportO (Specific Negotiation)
Barcode/OR Code ReaderO


Product Description

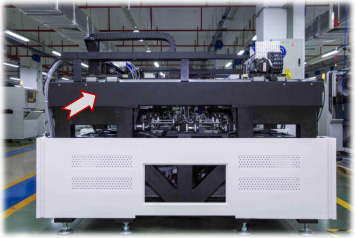

Dual Gantry & C/V


High Rigidity Support Frame

 •    Marble support base for Y axis motion (option)

•    XY axis by linear motor (option)





High Speed Insertion

•    Speed up 70%

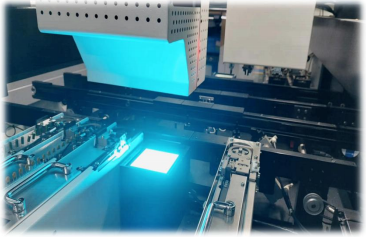

•    Dual sided  vision system and interface

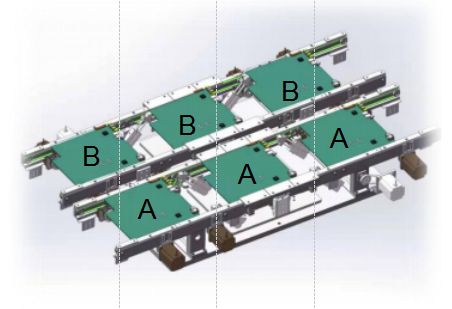

Flexible Dual Convyor



•    3-Step Type, Individual Control

•    Same or different model of product applicable


 Support Large Size PCB,

Width up to 500mm
