VCTA Laser Marking Machine
LC800 Specifications(With CO2 Laser)
CATEGORY | ITEM | VCTA-LC800 |
Carving System | Material | Non-Metal |
Category | Data Matrix/QRCode/Code39/Code128/Graphics/Word/Number |
Min barcode size | 2*2mm |
Min character | 0.2mm |
Galvanometer Speed | 3000mm/s（Working Speed） |
Galvanometer Orientation Precision | ≤2urad |
Laser Power | 10W ( 20W, 30W as option ) |
Lifetime | ≈ 30000 H |
Recognition System | Camera&Lens | High-Speed Smart CCD Camera with Ricoh industrial Lens |
Barcode reading System | Owning with online reading code system, according to the different levels of bar code to match the corresponding fixed read code |
Light Source System | The patented technology of ring tower light, can adjust to different color boards, dealing with complicated carving process |
Incoming Recognition | Can recognize the PCB "reverse" and "Badmark" |
Mechanism System | PCB Conveyor | PCB fixing: bottom-up, PCB warp correction Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard.Orbit clearance: 900±20mm |
PCB Size | Min PCB: 80*80mm Max PCB: 400*330mm |
PCB Thickness | 0.5mm~4.5mm |
PCB Fixing Mode | Mechanical blocking, CCD + MARK position coordinates and correction |
X,Y Platform &precision level | Driver | AC server system |
Moving Speed | 800mm/S |
PCB Orientation | ≦10um |
Location precision | ±0.03mm |
Soft System | Operation System | Microsoft Windows 10 |
Carving control system | Characteristic | Completely self-developed software system, powerful, easy to operate, according to different requirements of customers to customize respective different systems and software interfaces to send and receive data from the server to meet individual requirements of production management systems |
Operation | Graphic programming, Chinese, English |
Control System | Computer | Smart Industrial Computer, Intel dual-core CPU, Memory:8G, Hard disk: 2T |
Display | 23 inch TFT |
Other | Weight | 840 KG |
Air Supply | 0.5MPA,80CM3/min |
Machine Dimensions(L*W*H) | 1000*1300*1600 mm |
Power Supply | AC220V, 10%, single phase 5A 50/60HZ, power consumption 1250W |
Working Environment | Temperature10-40℃, humidity 30-80% RH |
|

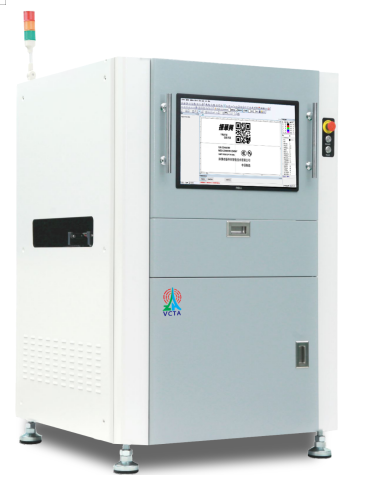

Equipment Picture:
