★ Equipped with imported high-speed industrial camera (5M pixels or 12MP/25MP for option)and telecentric industrial lens, with high precision and high speed

★Quick and convenient programming （AI programming+CAD+components library)

★ Stable software performance, high inspection capability and low false call

★ Standard RGBW ring 4-channel light source to meet the needs of various process substrate measurement

★ Powerful and detailed SPC report function, precise image analysis and processing system

★ Can be placed before or after reflow oven process

★ To support offline programming and remote debugging

★ Automatic identification of 1D/2D bar codes

★ Support one person, multiple machines, centralized control and management of production line

★ Support to connect MES system

★ Three point traceability for VCTA SPI+AOI Pre-Oven+AOI post-Oven

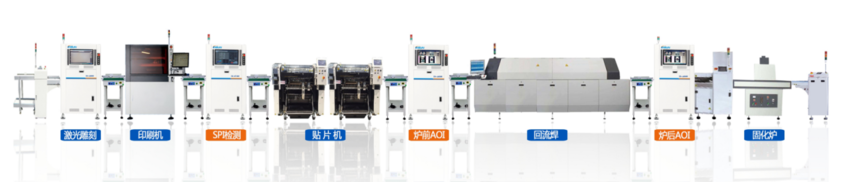

SMT WHOLE LINE SOLUTION SUPPLIER AND PARTNER

VCTA-S820L (inline 2D AOI) Specifications

CATEGORY	ITEM	SPECIFICATION
Recognition System	Inspection	The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction(RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc... More than 30 kinds of the most advanced algorithms.
	Camera	Digital high speed CCD 5M Pixel camera (12MP/20MP for option)
	Resolution	15um, 20um @5MP 15um, 12um@12MP
	Lens	High-resolution telecentric Lens
	Depth of focus	5mm (High depth of field lens can be selected for special requirements)
	Lighting Source	Rings RGBW LED lighting.
	FOV	40×40mm (20um) @5MP; 30×30mm(15um) @5MP; 5045mm (15um) @12MP; 4030mm(12um) @12MP
	0201 Chip	<7.6ms
	Per-image Time	220~450ms
	Paste Printing Defects	Missing,overflow, insufficient, pasting open, stain
	Component Defects	Missing, shift, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged
	Solder Defects	Overflow, insufficient, short solder, stain
	Wave Soldering Inspect	Overflow, insufficient, short, Excess Solder, solder void
	Inspection Items	0201&0.4mmpitch （20um） 01005& 0.3mm pitch（15um）
Mechanical System	PCB Conveyor	Left to right(Optional, right to left) PCB fixing: bottom-up, PCB warp correction. Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Orbit clearance: 900±20mm
	PCB Size	50×70mm-510×460mm
	PCB Thickness	0.5mm – 3.0mm
	PCB Warp Tolerance	<2mm（Fixture-assisted deformation correction）
	Component Clearance	TOP≤30mm, BOT≤30mm（customized for special requirements）
	Driver	AC server， camera moves in the directions of X/Y.
	Orientation	<10um
	Moving Speed	Standard：500mm/s，Max：800mm/s
Soft System	Operation System	Microsoft Windows 10 X64
	Characteristic	Basis on Vector analysis algorithm, integrated variety of software algorithms of Color Extraction、 Luminance Extraction 、Color Distance，for SMT components and the position of the solder joints , appearance , accurate positioning and analysis accurately eliminate all kinds of bad points
	Operation	Graphic programming, Chinese, English
	Programming	CAD、handwork programming, Support offline programming（Optional）
	Computer	Industrial Computer, Intel four-core I7 CPU, Memory:32G, Hard disk: 2TB
	Display	22 inch TFT
Network	Multi machine control	The operator can control multi same machines in the control terminal
	Network	NG adaptable, check and correct PCBA defects at repair station
	Communication port	SMEMA, RS232,RJ45
Other	Air Supply	0.5MPA, 80cm³/min
	Machine Dimensions	1150×1262×1660mm
	Weight	~670kg
	Power Supply	AC220V, 10%, single phase 5A 50/60HZ, power consumption 1200W
	Working Environment	Temperature10-40℃, humidity 30-80% RH

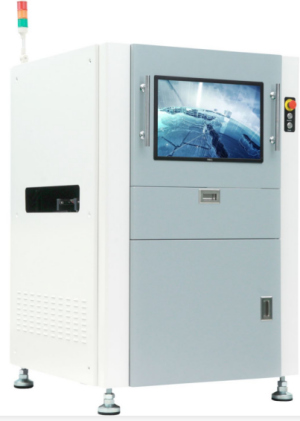

Equipment Picture:

Description of after-sale and warranty terms

The equipment be guaranteed free of charge for one year and maintained for whole life .

during the warranty period, all parts are replaced;

after the expiration of the warranty period, maintenance services can be provided through the warranty agreement, only the cost of spare parts is charged. The cost of product damage caused by non-quality reasons shall be borne by the user himself.

Customer Service Department quick responds to customer's request within 30 mins, and provide solutions within 2 hours.

The operation control software of the equipment sold is free of charge to provide lifelong upgrades to ensure the latest version and the improvement of its functions.

Training Service in China:

After the equipment arrives at the customer's factory, the factory will send an engineer to install the equipment , and then train the personnel designated by the customer. After qualified training, the customer personnel can operate the equipment independently and master the maintenance and related operations.

General free training 2-3 people, training time is about 7 days (further contact for the specific circumstances of customers )

According to the needs of customers, we can train in Shenzhen factory. We can arrange accommodation and other related matters.

Training Service in foreign countries:

The supplier provide telephone or online training support for the contract equipment. Or to provide free personnel training in supplier’s factory/city for the buyer’s staff.

For further more training service requirement, both parties contact further.
