BC230

Reflow oven Cooler Cleaning Machine

Model：BC230

1. Machine Application：

BC230 Pallet auto cleaning machine is mainly used to wash flux on reflow oven coolers and it can also used to wash soldering wave oven pallets, trays ...which concern with flux.

Put reflow oven coolers into the round basket manually, close machine upper cover,setting wash procedure, start the machine. Liquid spray form upper/ lower/ front liquid manifolds and spray hot liquid to coolers to make flux soften, fall down and wash out. After wash, liquid flows back to wash liquid tank. Then rinse tape water spray from upper/ lower/ front water manifolds to rinse coolers and take off liquid residual. After rinse, water flows back to rinse water tank. Finally, hot air blow from upper/lower/ front air knives to make coolers dry. After hot air dry process, open the upper cover and take out clean coolers manually. The round basket turns 360°at 15~20 rpm during wash, rinse and dry process.

Wash process: water based liquid wash+ tap water rinse,+hot air blow dry.

2.Machine Structure：

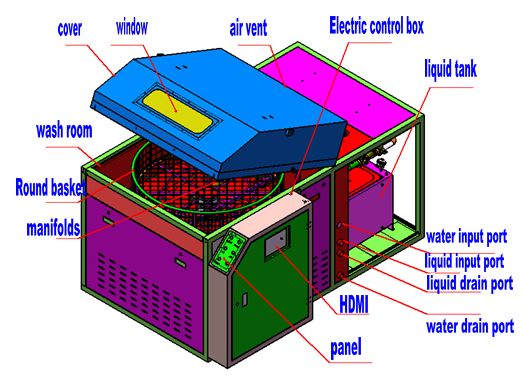

This machine has wash unit, rinse unit, hot air dry unit, filter unit and electric control unit.

3.Technical SPEC：

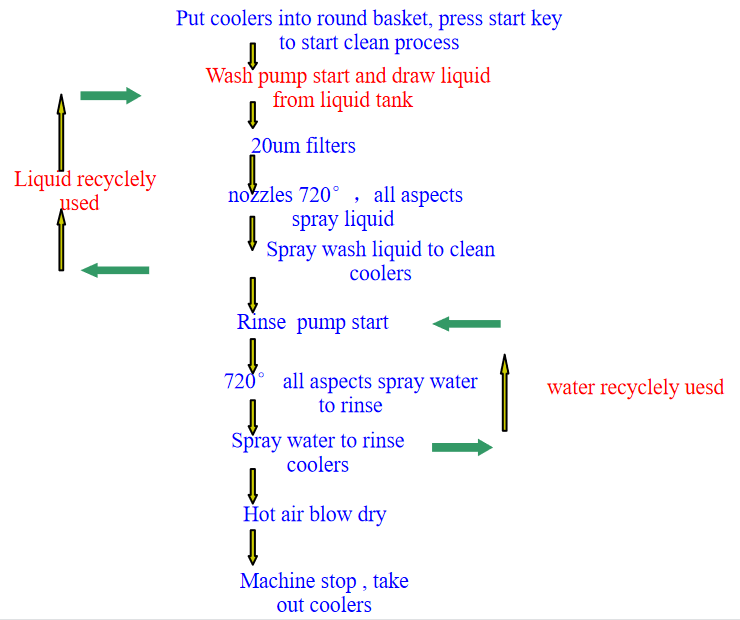

4.Flow Chart：
