BC310

Collect
Product Description


Pneumatic Double Stencil Cleaning Machine Technical SPEC

Model：BC310D




1.Machine Application：

BC310D is a pneumatic double stencil cleaning machine used to wash solder paste stencil, red glue stencils.



It has 2 independent cleaning units which can clean 2 stencils independently.



It is a compact, integrated, automatic cleaning machine. It adopts compressed air to drive the machine, not use electric power. The left and right spray rods rotate 360°and spray liquid or solvent onto surface of stencil to wash solder paste down.



    It is safe, so both solvent and water based liquid can be used in this machine.











2. Each Cleaning Unit Structure：


S/N

NAME

1

Pneumatic control box

2

Operational panel

3

Spray rods

4

Wash room

5

Stencil slider

6

Liquid box

7

Air cylinder

8



Air regulater

9

Filter barrel

10



Air pump











3.Technical SPEC：

S/N

Item

SPEC

Remarks

1

Stencil size

L750*W750*T40(mm)

As max

2

Stencil quantity

2pcs


3

Liquid tank capacity

40L/40L

Both solvent and water based liquid

4

Wash method

Double sides 360°  spray liquid to wash


5

Dry method

Compressed air blow dry


6

Wash time

3~5 min(solder paste stencil)

Each cleaning unit

7

Dry time

3~5 min

Each cleaning unit

8

Filter

Level 1: 1mm filter net to protect pump；

Level 2: 100um filter bag to hold labels ；

Level 3: 1um filter element to hold solder past balls.

Each cleaning unit

9

CDA supply

0.5Mpa~ 0.7Mpa

Each cleaning unit　

10

Air consumption

400~600L/min

Each cleaning unit

10

Air vent size

Φ120xH30mm

Each cleaning unit

11

Machine weight

480kg


12

Machine size

L1500*W960*H1700(mm)

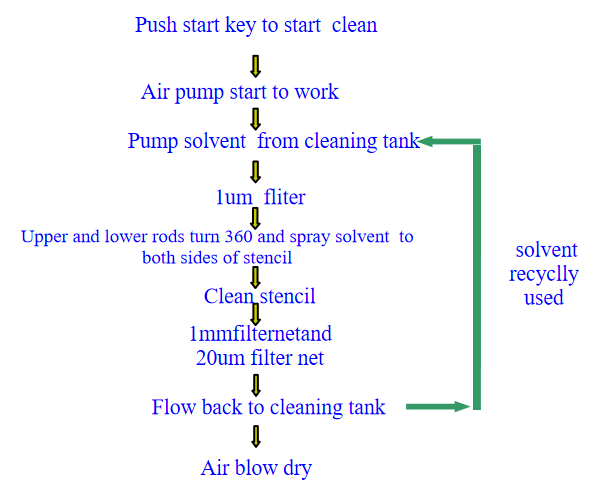

4.Flow Chart (each cleaning unit)：
