BC320
Collect
Product Description
Stencil Cleaning Machine Model：BC320 1.Machine Application： BC320 stencil cleaning machine is mainly used to wash solder paste stencil, red glue stencil, Red glue copper stencil, solder paste mis-printed PCB. BC320 use water based liquid to wash, DI water to rinse, hot air to blow dry. BC320 special spray wash unit design: 4 fixed spray manifolds, 4fixed air knives and stencil move back and forth moving structure make it a powerful, stable and reliable stencil cleaning machine.
2.Machine Structure：
This machine has wash unit, rinse unit, hot air dry unit, filter unit and electric control unit.

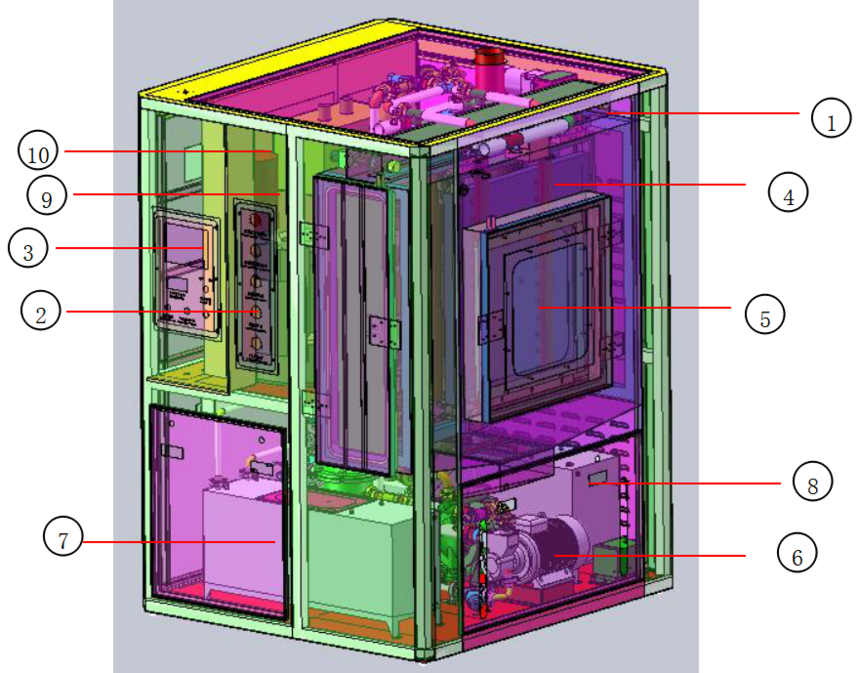

1）Electric control box. 2) Operational panel. 3) Touch Panel. Indicator. 4) Cleaning room 5) Observation window. 6) Electric pump. 7) Cleaning liquid tank. 8)Rinse water tank. 9) Air blower. 10)Filters.
3.Technical SPEC：

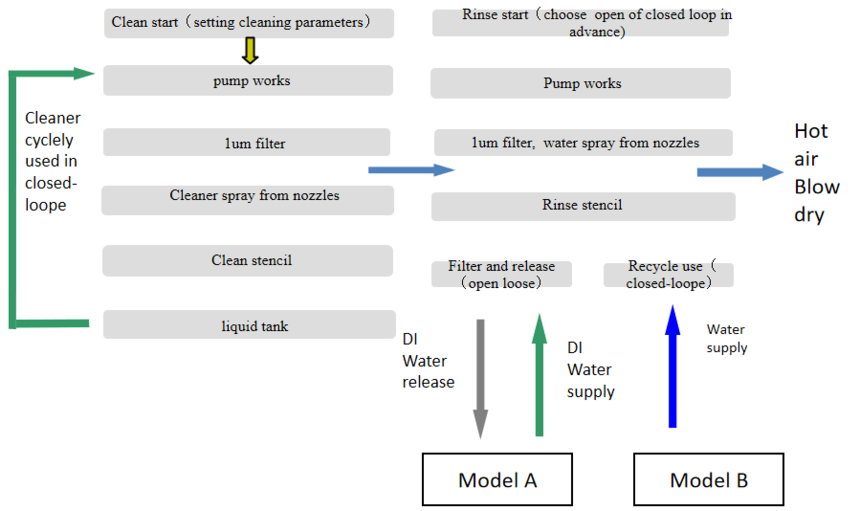

4.Flow Chart：
|
