BC410

Collect
Product Description


Squeegee Auto Cleaning Machine

Model：BC410



1.Machine Application：

BC410 squeegee auto cleaning machine is mainly used to wash solder paste leftovers on squeegee gaps, knives and corners.

BC410 use water based liquid to wash, DI water to rinse, hot air to blow dry.

BC410 use ultrasonic+spray cleaning method make it a very good cleaning machine for squeegees.

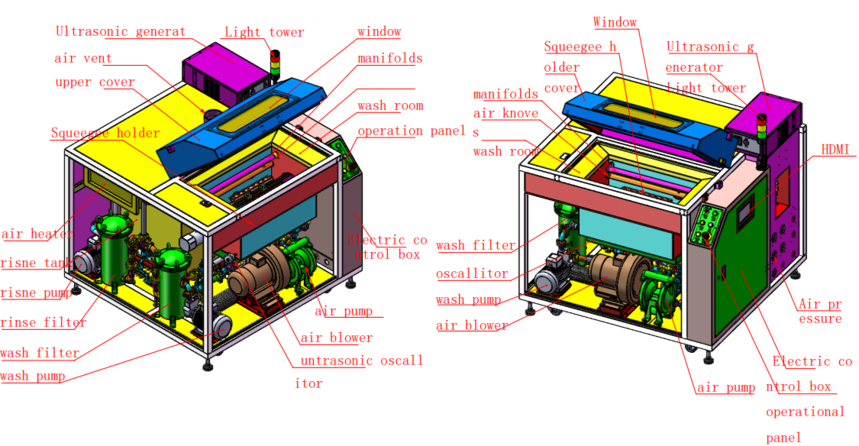

2.Machine Structure：



This machine has wash unit, rinse unit, hot air dry unit, filter unit and electric control unit.






3.Technical SPEC：

S/N

ITEM

SPEC

Remarks

1

Squeegee size

L600mm

As max

2

Squeegee quantity

6pcs of 600mm, 12pcs of 300mm

In one time

3

Liquid/water capacity

75Lx2


4

Wash time

5~15min


5

Rinse time

1~2min


6

Dry time

5~10min


7

Wash liquid

Water base liquid


8

Rinse water

Tap water or DI water


9

Dry method

High pressure hot air


10

Liquid/water temp

RT~60℃


11

Hot air temp

RT~90℃


12

Wash/rinse filter

1level100um filter net+2 level1um filter element


13

Ultrasonic power

1.2KW


14

Wash/rinse pump

1.1KW+1.1KW


15

Air pump

1inch，ARO


16

Power

28KW


17

Power/CDA supply

AC380V,50/60HZ,63A  /0.5~0.7Mpa


18

Machine size

L1400*W1300*H1300（mm）


19

weight

500KG

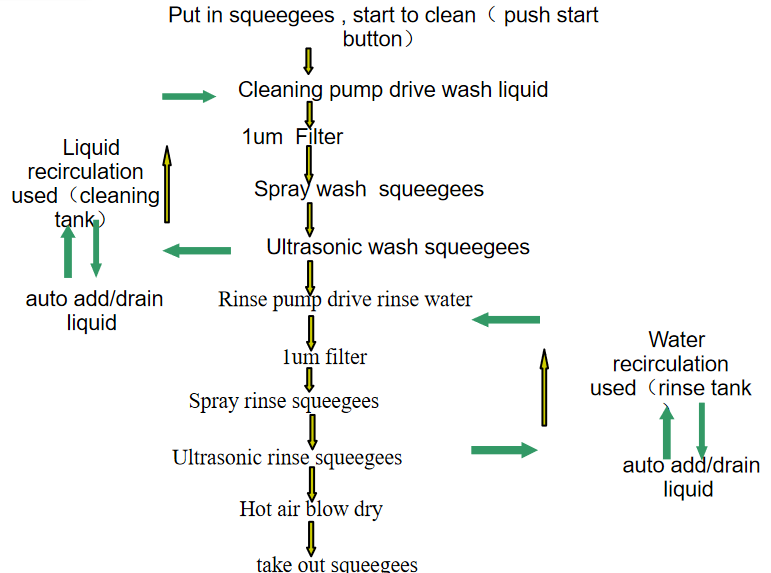

4.Flow Chart：
